This Towermaster was designed specifically for high-volume tower production. Two punch cylinders each maintain three individual punch sizes to minimize tool changes and expedite tower production.

Detail components make up the smallest tonnage of any fabricators' workload, but consistently demand the highest amount of labor. The AFPS-623/K processes angles and flats in one pass, reducing processing time and increasing punch performance. A rugged and durable Roller Feed measurement system ensures a constant roll and an accurate measurement given deviations in material.

Detail components make up the smallest tonnage of any fabricators' workload, but consistently demand the highest amount of labor. The Anglemaster-833 has the ability to process both a fabricators’ thinnest angle stock and thickest angle stock. By utilizing an array of dimensioning feedback, the Anglemaster-833 can identify the length and thickness of material. With this information, punch and shear motions are optimized to increase production efficiency.

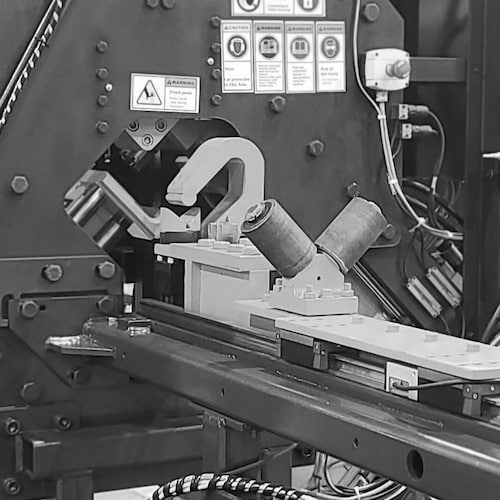

The Ocean Clipper is exceptionally robust and built to last. A minimal design means ease in operation and maintenance. Since the Ocean Clipper is so much more compact than other designs, it can be used in a host of fabricating environments that would otherwise not be able to consider a traditional CNC angle line. By embracing a unique approach of using a drill spindle in combination with the traditional punch, this incredibly compact machine does not need to jog the material forward to create in-line holes.

The Ocean Avenger is the perfect introduction into CNC processing for small fabricators. The flexibility of this machine will speed up current production handled by manual drilling methods, and open up a wider range of capabilities.

The CNC plate processing design by Peddinghaus drives material to the operating area of the machine as opposed to bringing the operating area of the machine to the material, like traditional burntable systems. The FDB-2500 provides constant material output to downstream processes. The FDB-2500 is the solution for plate cutting and drilling. This machine encompasses multiple capabilities, provides greater flexibility and maintains complete control of the quality in finished projects. Equipped with the Peddinghaus Roller Feed measurement system, the FDB-2500 maintains contact with the material at all times.

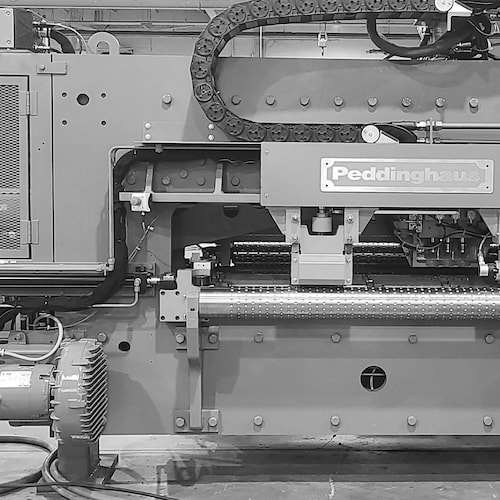

The CNC plate processing design by Peddinghaus drives material to the operating area of the machine as opposed to bringing the operating area of the machine to the material, like traditional burntable systems. The FPB-1500 provides constant material output to downstream processes. The FPB-1500 is the solution for supplementary plate cutting and punching. This machine encompasses multiple capabilities, provides greater flexibility and maintains complete control of the quality in finished projects. Equipped with the Peddinghaus Roller Feed measurement system, the FPB-1500 maintains contact with the material at all times.

The PeddiWriter automatic layout marking machine is the first of its kind, and has already achieved unprecedented success in the steel industry. With annual labor savings up to $300,000, the PeddiWriter marks as many as 150 profiles in a single shift and equals the work to that of 6 layout technicians. Designed with the rugged environment of typical fab shops in mind, the PeddiWriter relies on proven Hypertherm plasma technology to automate the processes of layout and fit up. The PeddiWriter makes non-intrusive layout marks that clearly designate cutting and welding operations.

The PeddiWriter automatic layout marking machine is the first of its kind, and has already achieved unprecedented success in the steel industry. With annual labor savings up to $300,000, the PeddiWriter marks as many as 150 profiles in a single shift and equals the work to that of 6 layout technicians. Designed with the rugged environment of typical fab shops in mind, the PeddiWriter relies on proven Hypertherm plasma technology to automate the processes of layout and fit up. The PeddiWriter makes non-intrusive layout marks that clearly designate cutting and welding operations.

Two punch cylinders each with three punch stations per hydraulic press allow the Anglemaster-863 to apply up to three different hole shapes/sizes per leg. This Anglemaster can accommodate shaped holes such as squares, rectangles, obrounds and slots.

Peddinghaus has shaped today’s beam drill line standard with time-tested technology. The Advantage processes an average of 75 tons of steel per work week with the most efficient drilling, scribing and stamping operations. Peddinghaus' renowned build quality and mechanical design provides the ultimate combination of agility and strength.

Detail components make up the smallest tonnage of any fabricators' workload, but consistently demand the highest amount of labor. The Anglemaster-823 processes angles and flats in one pass, reducing processing time and increasing punch performance.

Three drill assemblies on the BDL-1250/9B heavy-duty beam drill line operate simultaneously or independently of one another using either the same or different drill diameters, speeds and feeds. Fully programmable via CNC program, spindle operation is designed with drilling accuracy, allowing for some of the fastest drilling times on the market. The triple torch design of the ABCM-1250 oxy-fuel coper allows for cutting of two flanges simultaneously. While flange thins are performed on both top and bottom flanges at the same time, weld prep is generated concurrently. Without tedious torch probing processes, the ABCM allows for more near flange cutting.

Detail components make up the smallest tonnage of any fabricators' workload, but consistently demand the highest amount of labor. The Anglemaster-623 processes angles and flats in one pass, reducing processing time and increasing punch performance

The CNC plate processing design by Peddinghaus drives material to the operating area of the machine as opposed to bringing the operating area of the machine to the material, like traditional burntable systems. The FPB-1800 provides constant material output to downstream processes. This machine encompasses multiple capabilities, provides greater flexibility and maintains complete control of the quality in finished projects. Equipped with the Peddinghaus Roller Feed measurement system, the FPB-1800 maintains contact with the material at all times.

The CNC plate processing design by Peddinghaus drives material to the operating area of the machine as opposed to bringing the operating area of the machine to the material, like traditional burntable systems. The FPB-1500 provides constant material output to downstream processes. The FPB-1500 is the solution for supplementary plate cutting and punching. This machine encompasses multiple capabilities, provides greater flexibility and maintains complete control of the quality in finished projects. Equipped with the Peddinghaus Roller Feed measurement system, the FPB-1500 maintains contact with the material at all times.

The CNC plate processing design by Peddinghaus drives material to the operating area of the machine as opposed to bringing the operating area of the machine to the material, like traditional burntable systems. The FPB-1800 provides constant material output to downstream processes. This machine encompasses multiple capabilities, provides greater flexibility and maintains complete control of the quality in finished projects. Equipped with the Peddinghaus Roller Feed measurement system, the FPB-1800 maintains contact with the material at all times.

Detail components make up the smallest tonnage of any fabricators' workload, but consistently demand the highest amount of labor. The Peddinghaus Anglemaster-623/M processes angles and flats in one pass, reducing processing time and increasing punch performance.

Three drill assemblies on the BDL-1250/9B heavy-duty beam drill line operate simultaneously or independently of one another using either the same or different drill diameters, speeds and feeds. Fully programmable via CNC program, spindle operation is designed with drilling accuracy, allowing for some of the fastest drilling times on the market.

Three drill assemblies on the BDL-1250/9B heavy-duty beam drill line operate simultaneously or independently of one another using either the same or different drill diameters, speeds and feeds. Fully programmable via CNC program, spindle operation is designed with drilling accuracy, allowing for some of the fastest drilling times on the market.

The CNC plate processing design by Peddinghaus drives material to the operating area of the machine as opposed to bringing the operating area of the machine to the material, like traditional burntable systems. The FPB-1500 provides constant material output to downstream processes. The FPB-1500 is the solution for supplementary plate cutting and punching. This machine encompasses multiple capabilities, provides greater flexibility and maintains complete control of the quality in finished projects. Equipped with the Peddinghaus Roller Feed measurement system, the FPB-1500 maintains contact with the material at all times.

Peddinghaus has shaped today’s beam drill line standard with time-tested technology and high-quality parts. Purchase this Advantage drill line for spare parts or to process an additional average of 75 tons of steel per work week.

Steel fabricators who utilize Peddinghaus drill/saw tandem systems reap the benefits of consecutive processing without interruption. Experience a seamless flow from one machine to the next thanks to automatic measurement. All parts are measured for tandem processing by the drill’s measurement system, meaning only one operator is needed to complete both drilling and cutting operations.

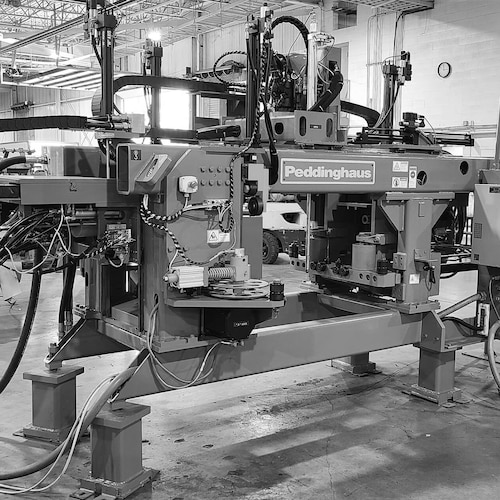

The triple torch design of the ABCM-1250 oxy-fuel coper allows for cutting of two flanges simultaneously. While flange thins are performed on both top and bottom flanges at the same time, weld prep is generated concurrently. Without tedious torch probing processes, the ABCM allows for more near flange cutting.

The PeddiWriter automatic layout marking machine is the first of its kind, and has already achieved unprecedented success in the steel industry. With annual labor savings up to $300,000, the PeddiWriter marks as many as 150 profiles in a single shift and equals the work to that of 6 layout technicians. Designed with the rugged environment of typical fab shops in mind, the PeddiWriter relies on proven Hypertherm plasma technology to automate the processes of layout and fit up. The PeddiWriter makes non-intrusive layout marks that clearly designate cutting and welding operations.

The triple torch design of the ABCM-1250 oxy-fuel coper allows for cutting of two flanges simultaneously. While flange thins are performed on both top and bottom flanges at the same time, weld prep is generated concurrently. Without tedious torch probing processes, the ABCM allows for more near flange cutting.

The CNC plate processing design by Peddinghaus drives material to the operating area of the machine as opposed to bringing the operating area of the machine to the material, like traditional burntable systems. The FDB-2500 provides constant material output to downstream processes. The FDB-2500 is the solution for plate cutting and drilling. This machine encompasses multiple capabilities, provides greater flexibility and maintains complete control of the quality in finished projects. Equipped with the Peddinghaus Roller Feed measurement system, the FDB-2500 maintains contact with the material at all times.

The triple torch design of the ABCM-1250 oxy-fuel coper allows for cutting of two flanges simultaneously. While flange thins are performed on both top and bottom flanges at the same time, weld prep is generated concurrently. Without tedious torch probing processes, the ABCM allows for more near flange cutting.

Three drill assemblies on the BDL-1250/9B heavy-duty beam drill line operate simultaneously or independently of one another using either the same or different drill diameters, speeds and feeds. Fully programmable via CNC program, spindle operation is designed with drilling accuracy, allowing for some of the fastest drilling times on the market.

Three drill spindles on the BDL-1250/9B heavy-duty beam drill line operate simultaneously or independently of one another using either the same or different drill diameters, speeds and feeds. Fully programmable via CNC program, spindle operation is designed with drilling accuracy, allowing for some of the fastest drilling times on the market.

The Voortman V630 drill offers high productivity with its three independently operating drill heads. Each drill head features an automatic tool changer with six tool positions for various tasks such as drilling, milling, tapping, countersinking, layout marking and centerpoint marking.

Peddinghaus revolutionized CNC plate processing with its innovative design, which brings the material to the operating area of the machine, unlike traditional burntable systems. With the FDB-2500, constant material output to downstream processes is ensured. The FDB-2500 is the ultimate solution for plate cutting and drilling, combining various capabilities and offering enhanced flexibility while maintaining impeccable control over project quality. Featuring the Peddinghaus Roller Feed measurement system, this machine maintains continuous contact with the material throughout the process.

Don't pass up this deal on an entire Ficep single-spindle drill/saw tandem system complete with infeed and outfeed conveyors.

Steel fabricators who utilize Peddinghaus drill/saw tandem systems reap the benefits of consecutive processing without interruption. Experience a seamless flow from one machine to the next thanks to automatic measurement. All parts are measured for tandem processing by the drill’s measurement system, meaning only one operator is needed to complete both drilling and cutting operations.

The Ocean Avenger is the perfect introduction into CNC processing for small fabricators. The flexibility of this single-spindle drill line will speed up current production handled by manual drilling methods, and open up a wider range of capabilities.

The triple torch design of the ABCM-1250 oxy-fuel coper allows for cutting of two flanges simultaneously. While flange thins are performed on both top and bottom flanges at the same time, weld prep is generated concurrently. Without tedious torch probing processes, the ABCM allows for more near flange cutting.

Ficep A206T

Peddinghaus has shaped today’s beam drill line standard with time-tested technology. The Advantage processes an average of 75 tons of steel per work week with the most efficient drilling, scribing and stamping operations. Peddinghaus' renowned build quality and mechanical design provides the ultimate combination of agility and strength.
